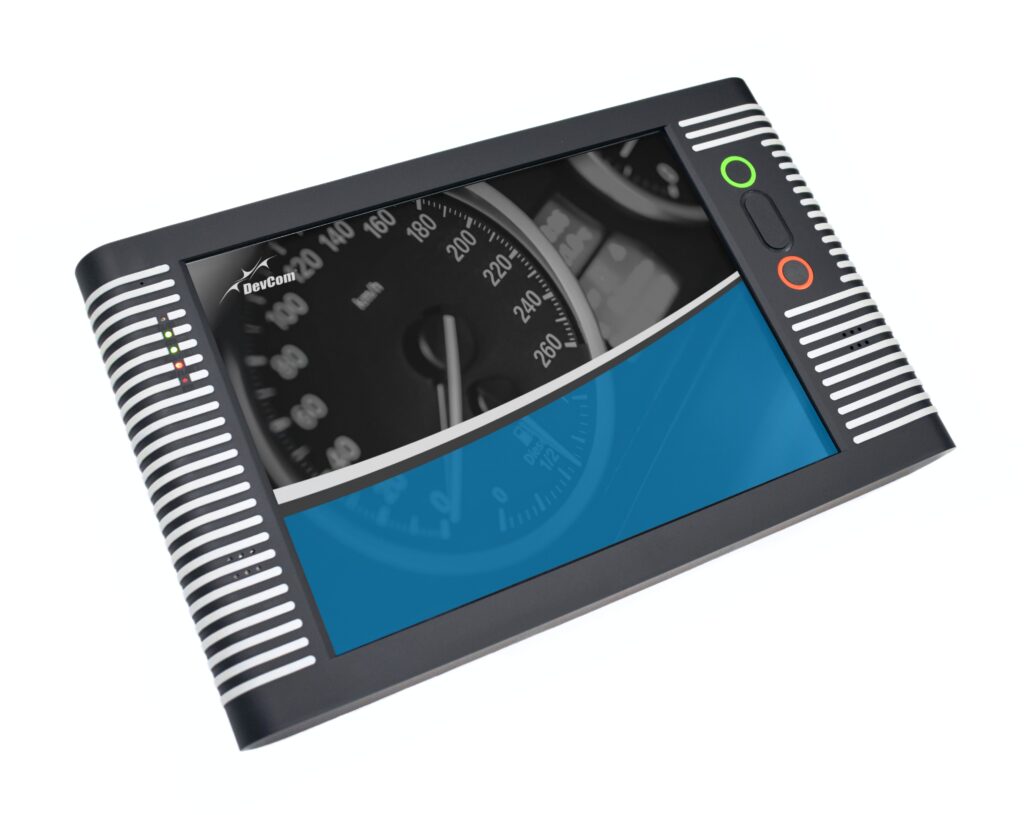

TSPro 10 – CAR Multibrand

70 000 Kč excl. VAT

he latest generation of professional diagnostic tablets features a wide range of connectivity options (4G/LTE, WiFi 802.11 a/b/g/n, Bluetooth 4.0), modern technologies (DoIP and CAN FD), and online functions (Security Gateway).

SKU: TS02-108 I-1 Categories: , , , , , Tag:

The latest generation of professional diagnostic tablets features a wide range of connectivity options (4G/LTE, WiFi 802.11 a/b/g/n, Bluetooth 4.0), modern technologies (DoIP and CAN FD), and online functions (Security Gateway).

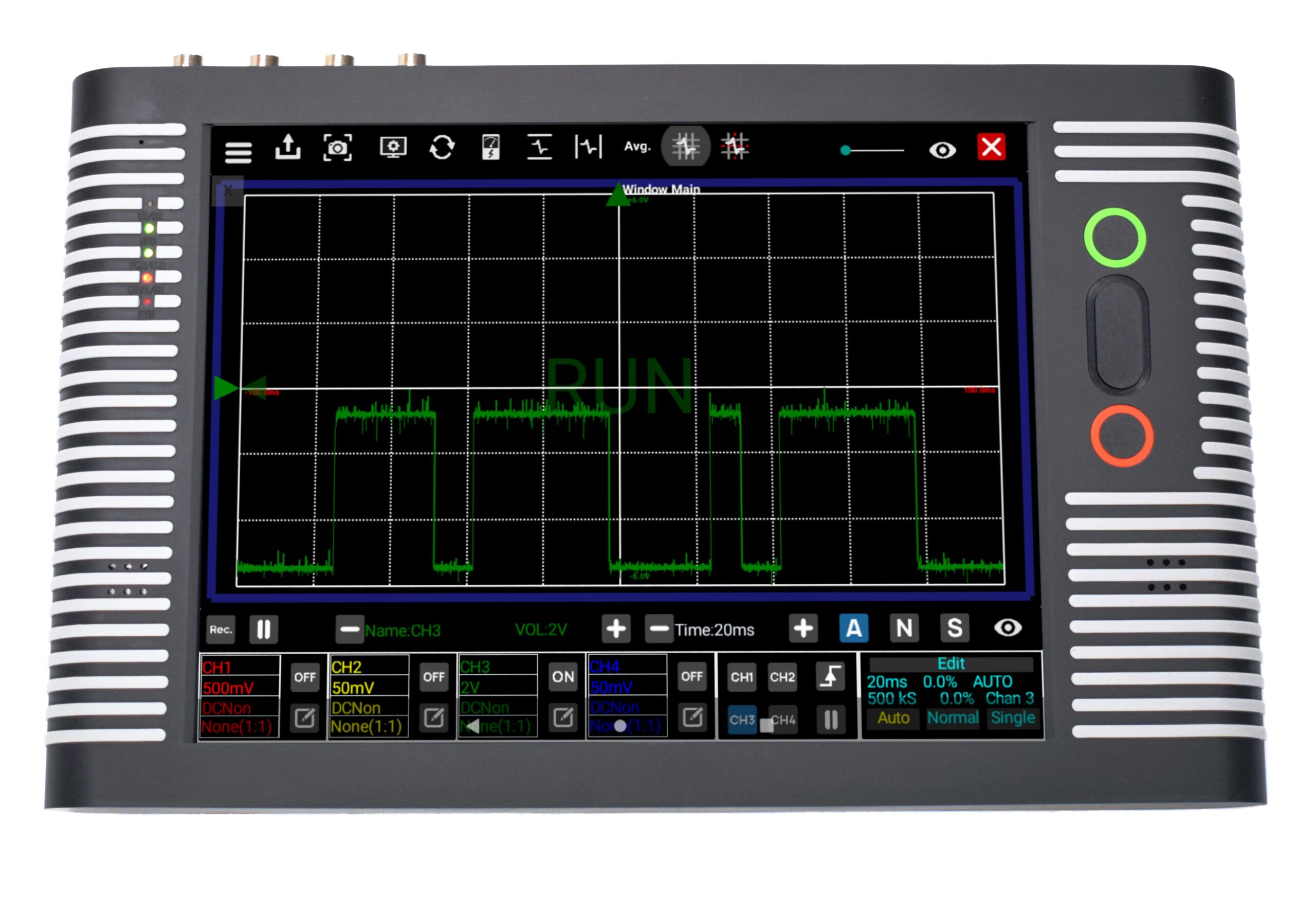

It offers durable construction and a refined finish, with an integrated camera and the option to expand with an oscilloscope.

The price includes the device, power supply, EOBD MUX cable, software license for all car and commercial vehicle brands, and the first version of the software update.

Supported diagnostic features

  • ECU identification
  • Reading and clearing DTCs from ECU memory
  • Vehicle parameters monitoring

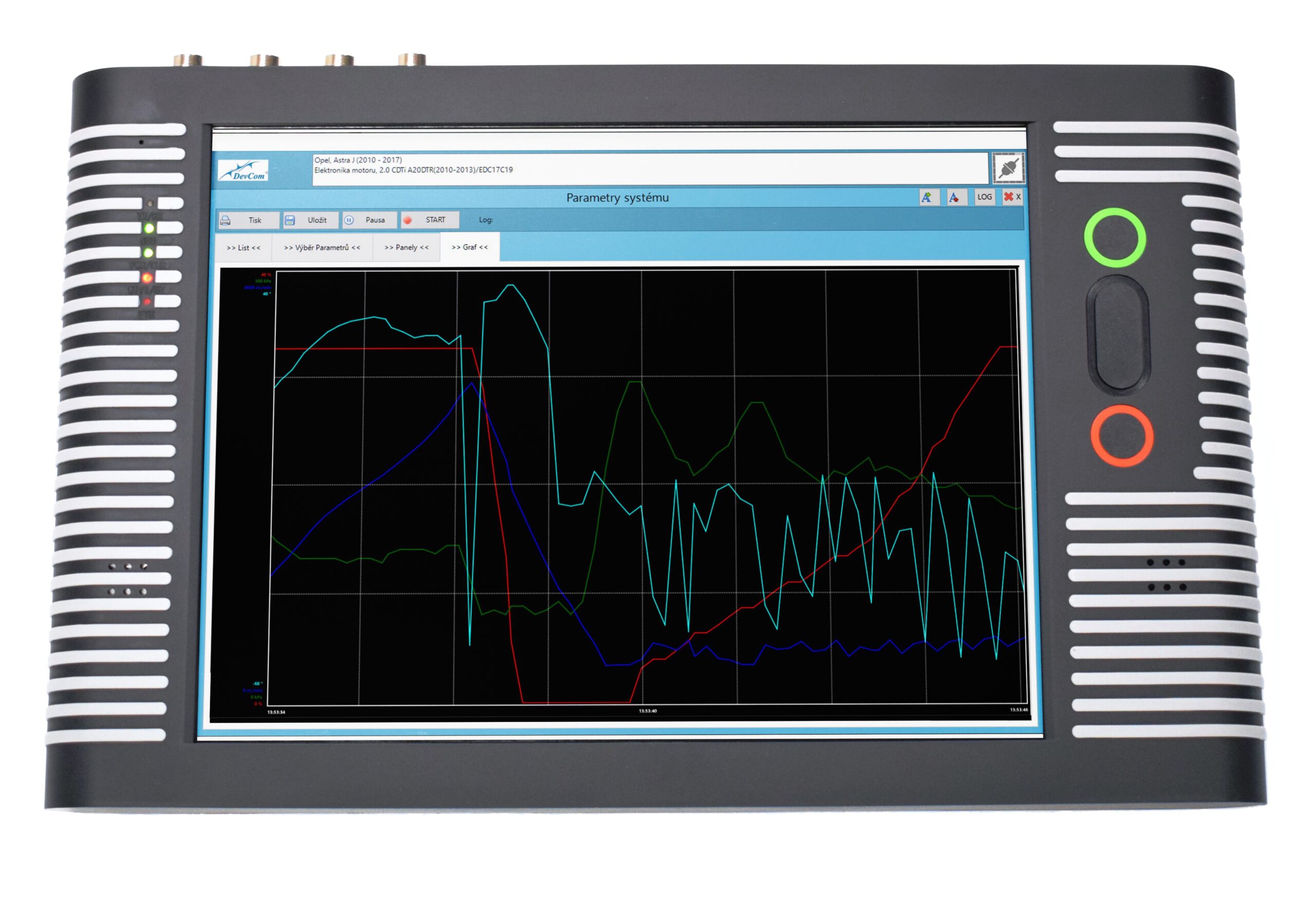

    • Visual data representation (graph mode)
    • Data logging for any number of parameters
  • Actuator testing precedures
  • Additional features
    • ECU configuration/adaptation
    • Sensor calibration
    • DPF regeneration
    • Component replacement functions and configurations
    • Service and oil change interval reset
    • Various other procedures specific for each vehicle

Support for specific control units depends on the actual units available in the vehicle and their support for specific functions.

Weight 1602 g
Dimensions 310 × 191 × 35 mm
Diagnostics type

, ,

Supported cars

Alfa Romeo, Audi, Autobianchi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Citroën, Cupra, Dacia, Daewoo, Daihatsu, Dodge, DS Automobiles, Ferrari, Fiat, Ford, GMC, Honda, Hummer, Hyundai, Infiniti, Innocenti, Isuzu, Jaguar, Jeep, Kia, Lada, Lamborghini, Lancia, Land Rover, Lexus, Lincoln, Maserati, Mazda, Mercedes-Benz, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Polones, Porsche, Proton, Renault, Rolls-Royce, Rover, Saab, Seat, Škoda, Smart, SsangYong, Subaru, Suzuki, Tesla, Toyota, Volkswagen, Volvo
Display

, , ,

OBD diagnostics

CAN ISO 11898, Ethernet DoIP ISO 13400, Fault tolerant CAN ISO 11519, K-line, L-line, VPW, PWM
Connectors

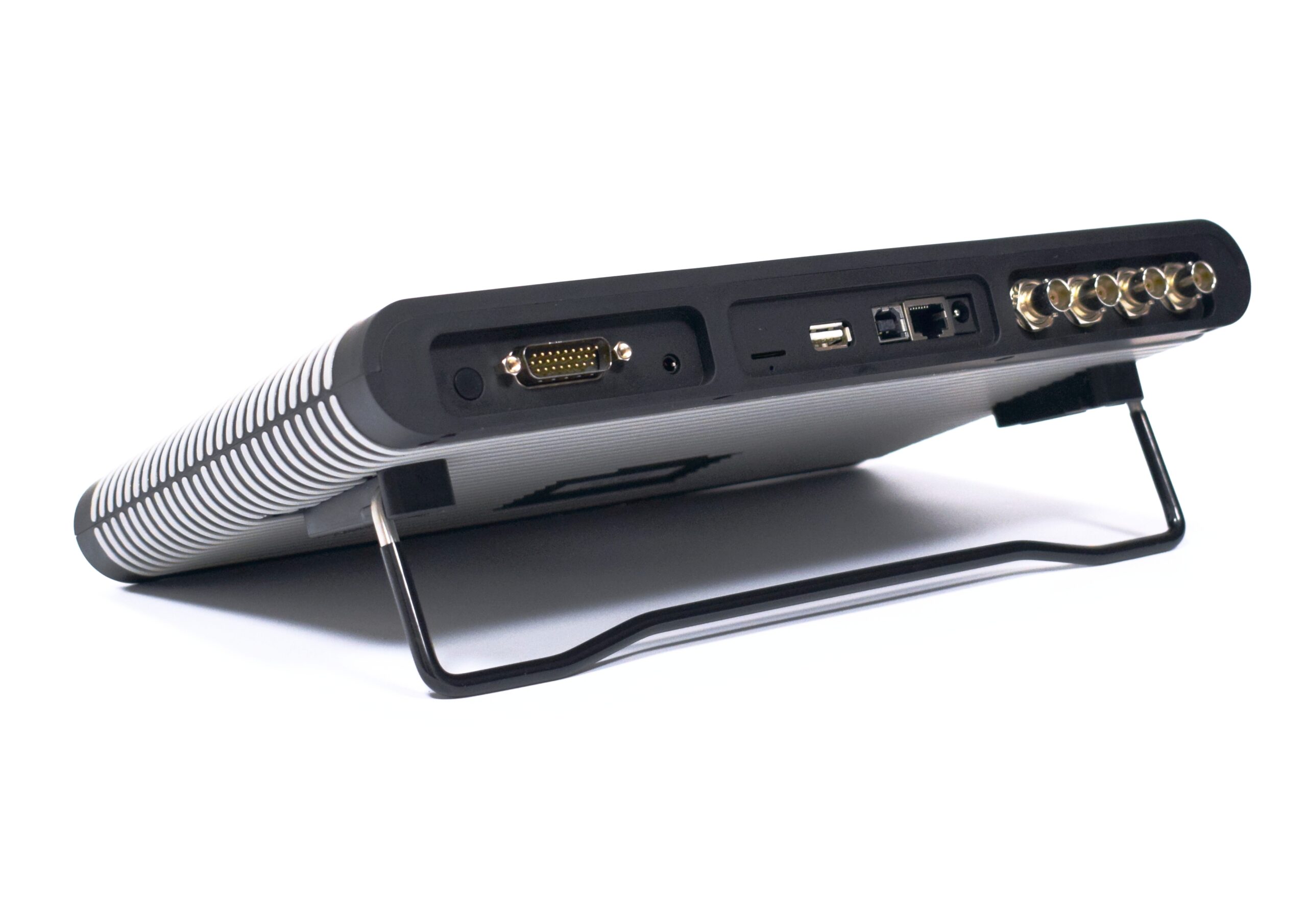

3,5 mm (4-pin) audio jack, canon 26-pin CAN bus connector, power supply connector, RJ45 Ethernet (100 Mbps), USB 2.0 type A, USB 2.0 type B
Power supply

12V DC (vehicle), 220V included power supply, Internal battery
Other features

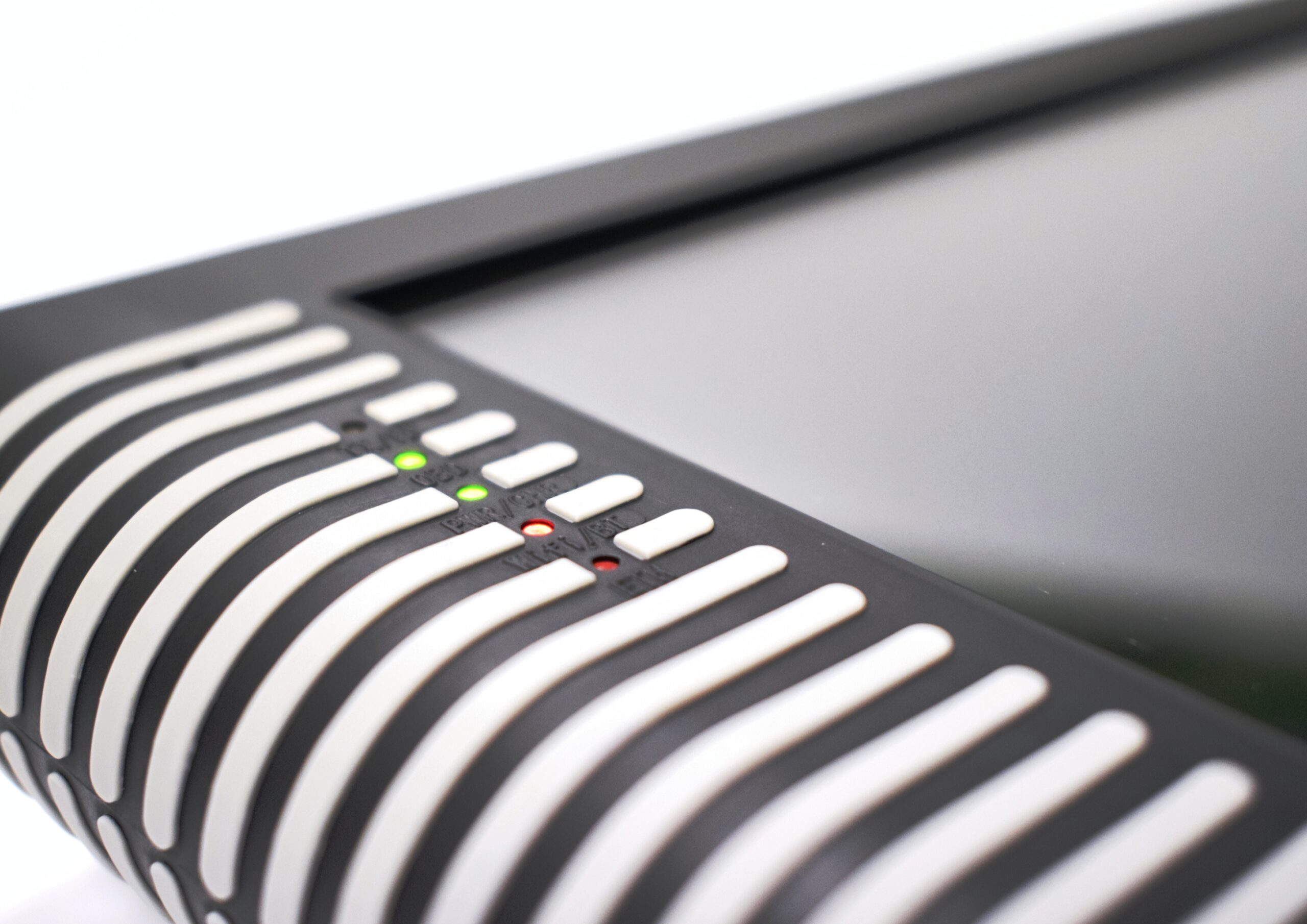

3-axis digital accelerometer, 5 Mpx camera with LED flash, Ambient light sensor, Android 9.0 OS, Bluetooth, Integrated microphone, MicroSD card slot, Simple keyboard, Status LEDs, Stereo speakers, Wifi
